Double-ended coil reel, or say twin decoiler machine is an ideal choice for the sheet metal processing needs a quick coil change. When the one uncoiler spindle is working, the other one can set up with a new coil, which achieves a non-stop metal coil processing line.

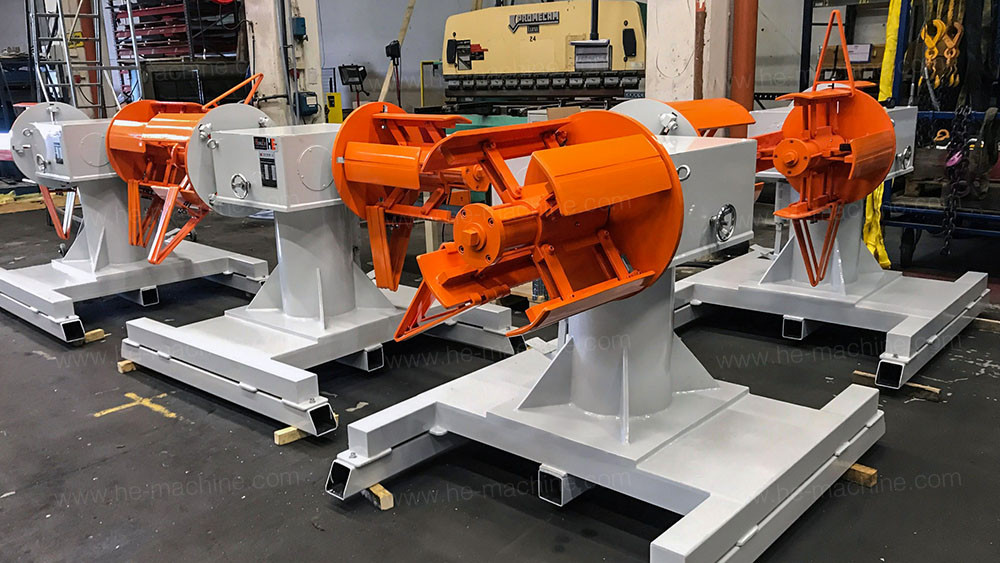

Passive Double Uncoiler
Lamination stamping line and roll forming line use passive double uncoilers mostly, a straightforward solution for quick coil change.
It needs the next work station such as straightener to pull the coil strip, so the uncoiling speed is flexible depends on your specific application.
Operation: Non-motorized Decoiler Expansion: Manual Brake System: Band brake Locating Stop Device: Hand-wheel Max. Capacity Width: 400mm Loading Capacity: 500kgs to 3000kgs per side
Hydraulic Double Uncoiler
Motorized double uncoiler is suitable for the production line that needs quick coil change.
It's ideal for the narrow strip that is not allowed external force pull.
And for the medium-duty coil above 3tons, a hydraulic expansion uncoiler is needed to save human resources.
Operation: Motorized Decoiler Expansion: Hydraulic Brake System: Band brake (Disk brake for option) Locating Stop Device: Hand-wheel Max. Capacity Width: 1600 mm Loading Capacity: 1000kgs to 5000kgs per side Speed: 16m/min or 30m/min

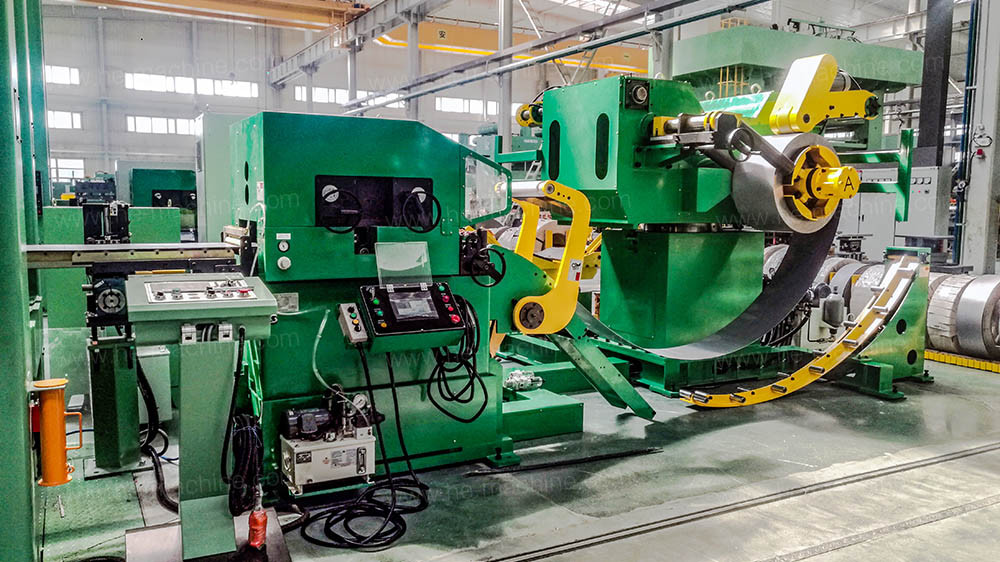

Double Uncoiler Compact Line
It's a decoiler-straightener-feeder coil feeding line with high automation that improves work efficiency, which can handle a wide range of coil specifications.
A twin decoiler can help change the coil convenient and swift. With a simple touch screen operation, it can make coil material loading and strip loop formation automatically.
Operation: Motorized Decoiler Expansion: Hydraulic Brake System: Pneumatic disk brake Max. Capacity Width: 1600 mm Loading Capacity: 5000kgs to 10000kgs per side Speed: 16m/min

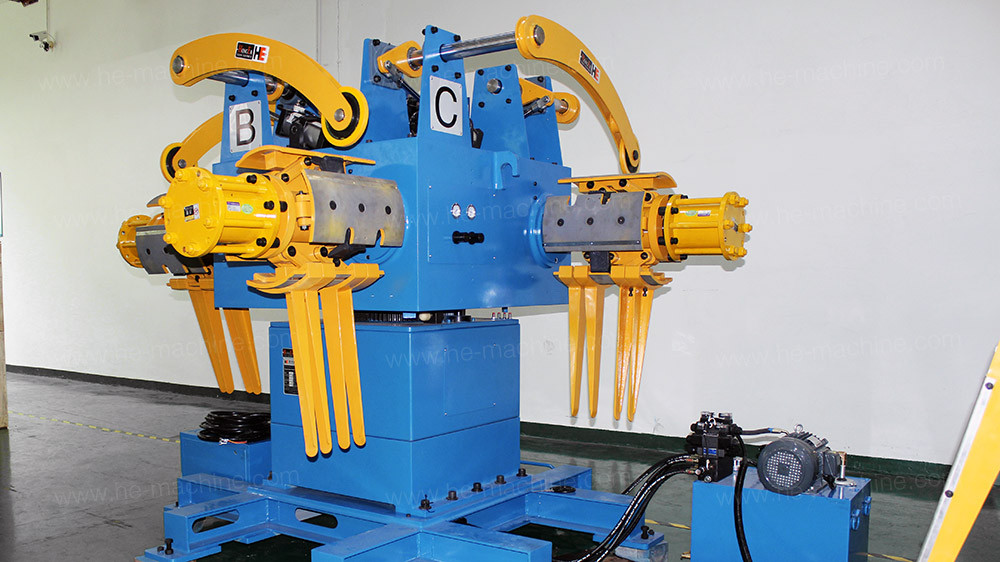

HE introduced the first Chinese quadruple uncoiler machine.
When there are multiple material types that need to uncoil in one production line, a quadruple uncoiler will save the coil handling time and improve whole line efficiency.
With well-welded steel structure base, the quadruple uncoiler is able to handle four medium-duty coils at the same time.
Operation: Motorized Decoiler Expansion: Hydraulic Brake System: Pneumatic disk brake Loading Capacity: 1000kgs to 5000kgs per side Speed: 16m/min
