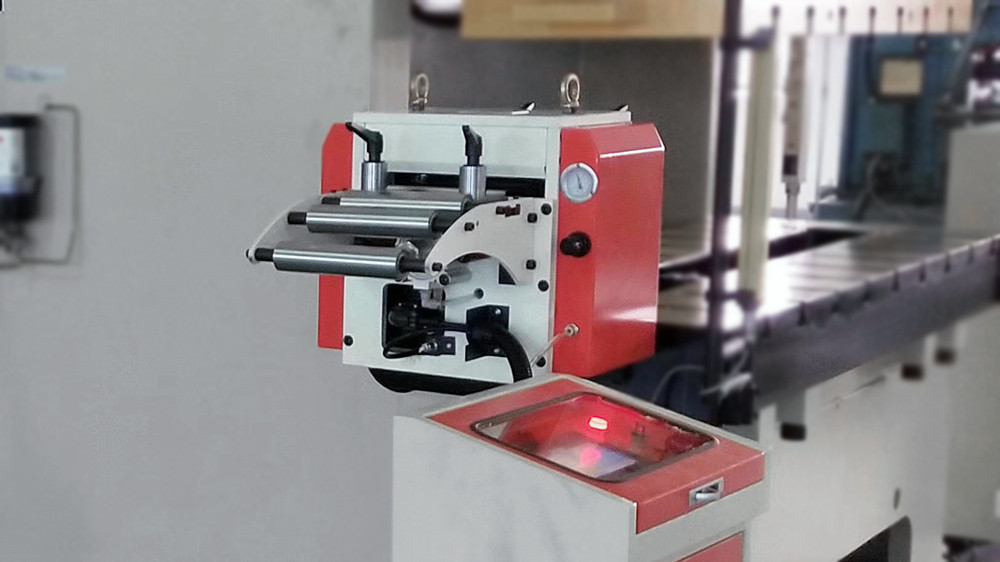

SERVO ROLL FEEDER RNC SERIES
The RNC series servo roll feeder is our best selling feeder. With a high concentric mechanical structure and precision parts, combined servo control system, it achieves a precision feeding performance in 0.1mm.
Capacities
Applicable Material
Material Thickness: 0.3-3.2 mm/ 0.5-4.5mm/ 0.5-6.0mm
Coil Wdith: 20mm to 1300mm
Feeding Speed
0-24m per minute
Features
Reliable Machine Design
High concentricity mechanical structure ensures better coil feeding performance; the machine body has a rigid frame and providing stable work. Desk type control cabinet with the slant top, 7'' touch screen panel, ergonomic and comfortable operated design.
Safety Operation
CE certificated spare parts, meets the European safety standard; Machine corner treatment to prevent injury; World-leading brand air switch, AC contactor, and other electronic devices to protect safety operation.
Variety operation modes
RNC servo roll feeder has automatic, manual, and setup mode. The manual and set up mode is easy to operate, which is perfect for production initial adjustment and coil ends feeding. And then, the automatic mode process full automatic coil feeding for mass production.
Segment Feeding Function
RNC offers segment feeding function, the standard model has three segments with different feeding length, and each section can process 999 times coil feeding.
Multiple control systems
According to the operation habits of different areas, RNC can adopt different control systems for you, such as Mitsubishi, Siemens, ABB, etc.
Accuracy and reliable feeding performance
Servo motor and servo drive are high torque with low inertia, ensures a reliable coil feeding. With pneumatic release system and precision control, RNC achieves an accuracy feeding of +/- 0.1mm.
Specification
Specification Sheet | |||||||
Model | RNC-200 | RNC-300 | RNC-400 | RNC-500 | RNC-600 | RNC-700 | RNC-800 |
Max. Coil Width | 200mm | 300mm | 400mm | 500mm | 600mm | 700mm | 800mm |
Material Thickness | 0.3-3.2mm | ||||||
Upper Roller Release | Pneumatic | ||||||
Feeding Roller Diameter | Upper Roll Ø65mm, Bottom Roll Ø80mm | ||||||
Feeding Length | Max. 9999.99mm | ||||||
Feeding Precision | ± 0.1 mm | ||||||
Feeding Speed | 0-24m/min | ||||||
Specification Sheet | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Model | RNC-300B | RNC-400B | RNC-500B | RNC-600B | RNC-300H | RNC-400H | RNC-500H | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Coil Width | 300mm | 400mm | 500mm | 600mm | 300mm | 400mm | 500mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Material Thickness | 0.5-4.5mm | 0.5-6.0mm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Upper Roller Release | Pneumatic | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Feeding Roller Diameter | Upper Roll Ø75mm, Bottom Roll Ø90mm | Upper Roll Ø90mm, Bottom Roll Ø90mm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Feeding Length | Max. 9999.99mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Feeding Precision | ± 0.1 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Feeding Speed | 0-24m/min | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Advanced Options
Independent support bracket for stable mounting
20 segments feeding function
Multiple language capability, Spanish, Polish etc.
