In the automotive, communications, computer and other electronics manufacturing industries, the terminals are indispensable parts. It is usually in the form of a strip, has a clamping head and a lead leg integrated with it, and formed by strip sheet metal stamping.
The traditional terminal stamping processing method uses the conventional press with manually feed. However, this method has low processing efficiency, with poor quality, high processing cost, and high labor intensity. For the terminal's production, the most efficient and reliable processing method in the stamping industry currently is the use of high-speed stamping production line. It improves production efficiency with top quality terminals, which genuinely meet the needs of modern processing and production.

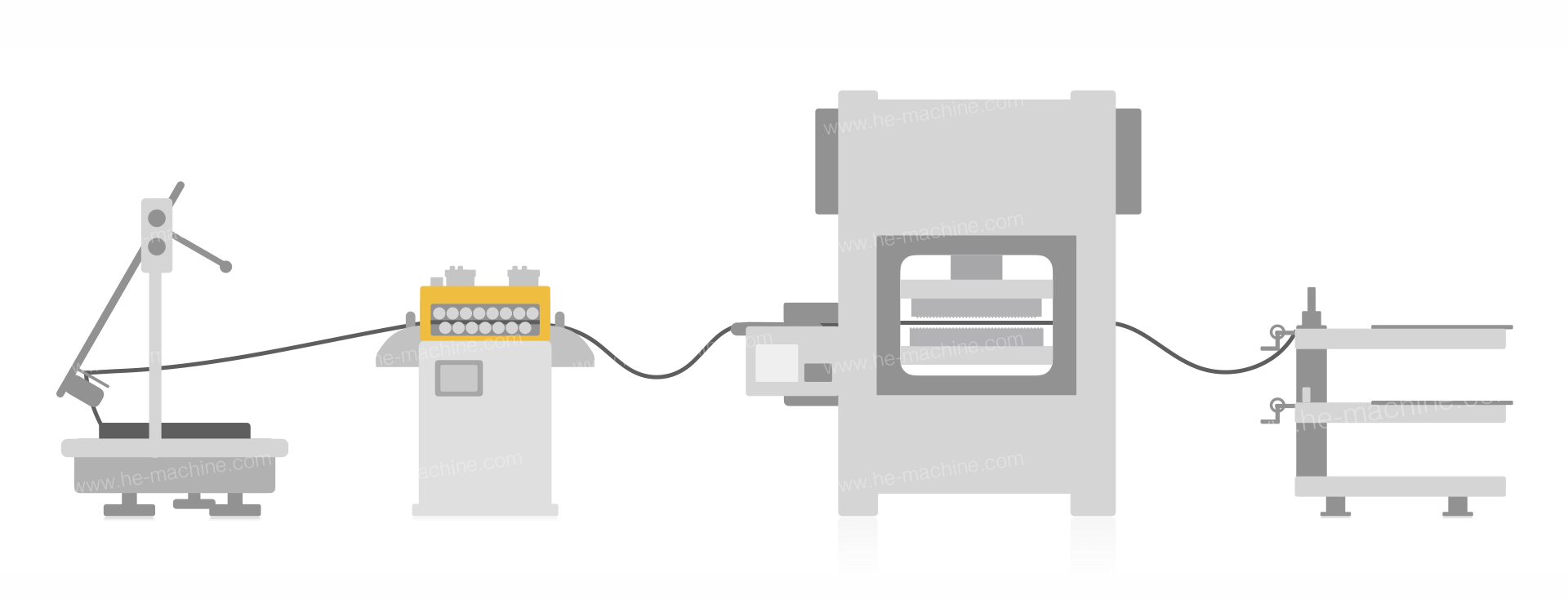

A high-speed terminal stamping line is usually composed of a pallet decoiler for high-speed decoiling, a precision straightener machine for strip leveling, a gripper feeder for high-speed feeding, a high-speed punch press for stamping production, and a recoiler machine for collecting terminals. Together, they form a complete and fully automated stamping line that can process terminals products of various types and applications.During the use of the terminal high-speed stamping production line, the operator only needs to perform simple operations. After that, the production line can complete the processing of the entire coil without any manual assistance.

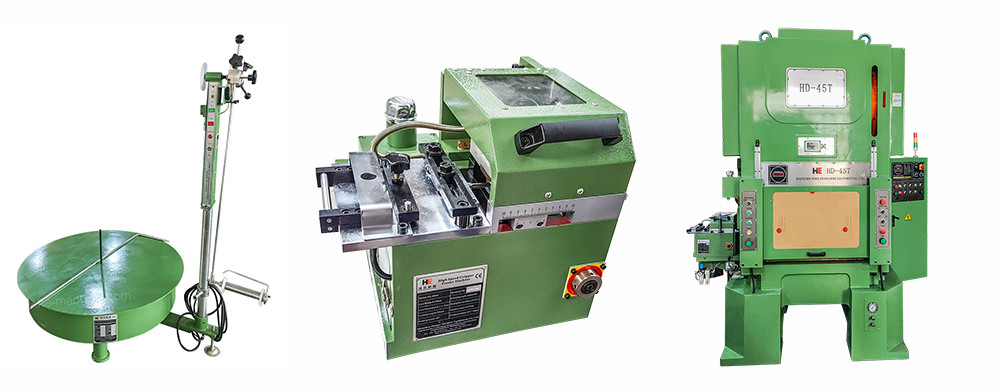

Main Parts & Description
1. Pallet Decoiler
HE pallet decoiler is ideal for high-speed stamping lines, such as terminal stamping, metal button and small electrical parts pressing line. It can stock 4pcs of 150mm width coil at one time, and suitable for all kind of coil inner diameter. The feeding speed can reach 24meters per min.
2. Steel Straightener (Option)
Some production lines may require high flatness of the stamped product. In this situation, HE provides a precision straightener for options.
3. Mechanical Gripper Feeder
The feeding speed of HE mechanical gripper feeder can reach 1200SPM. Without marks left on the material surface after feeding, gripper feeder is ideal for copper, stainless steel, aluminum etc.material.
4. High-Speed Press Machine
H frame press has high accuracy performance in automatic feed, single stroke or progressive die applications. The machine body is made by high intensive cast iron, through natural environment eliminates stress, enhance machine durability. Electric control system achieves a high automation operation and a forced lubrication system ensures the operation reliability.
